What we run
Under one roof

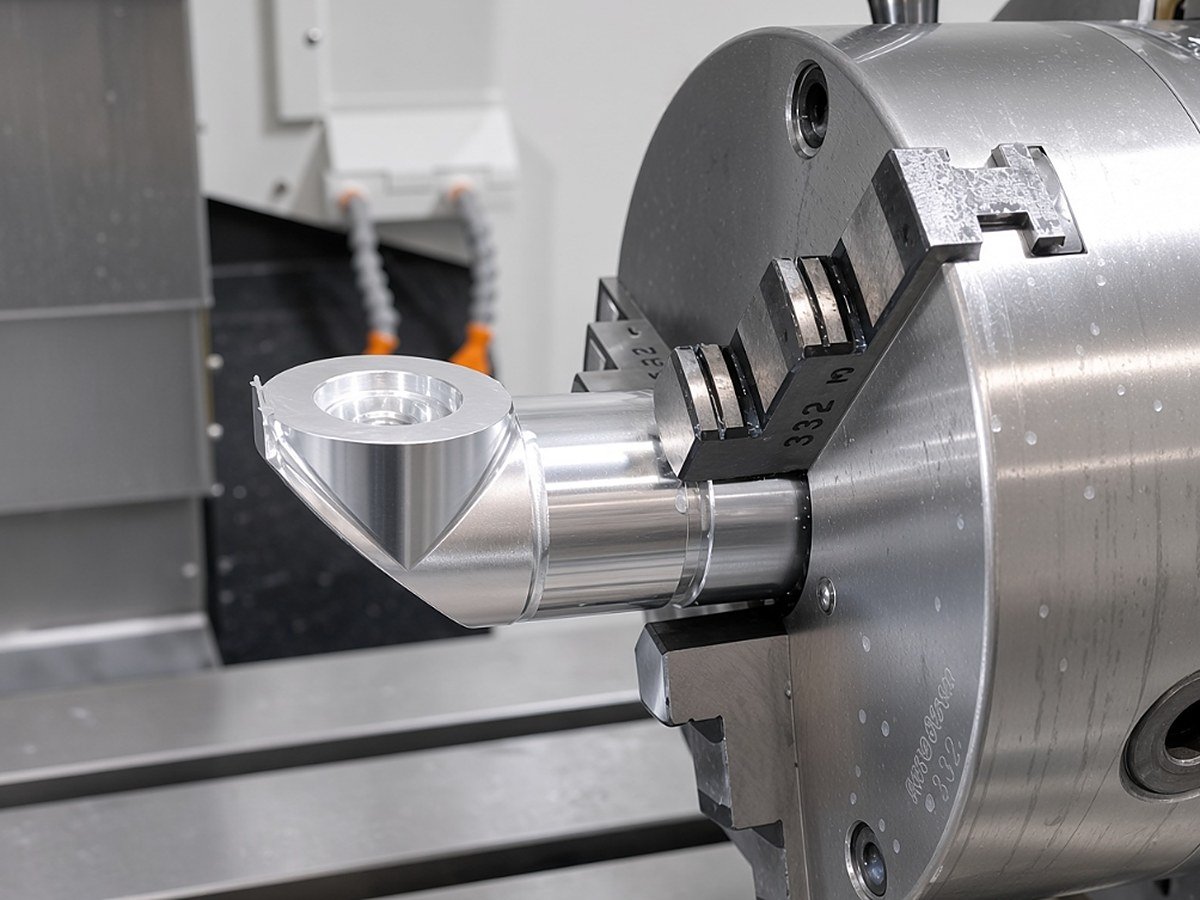

- C axis turning with bar feeding

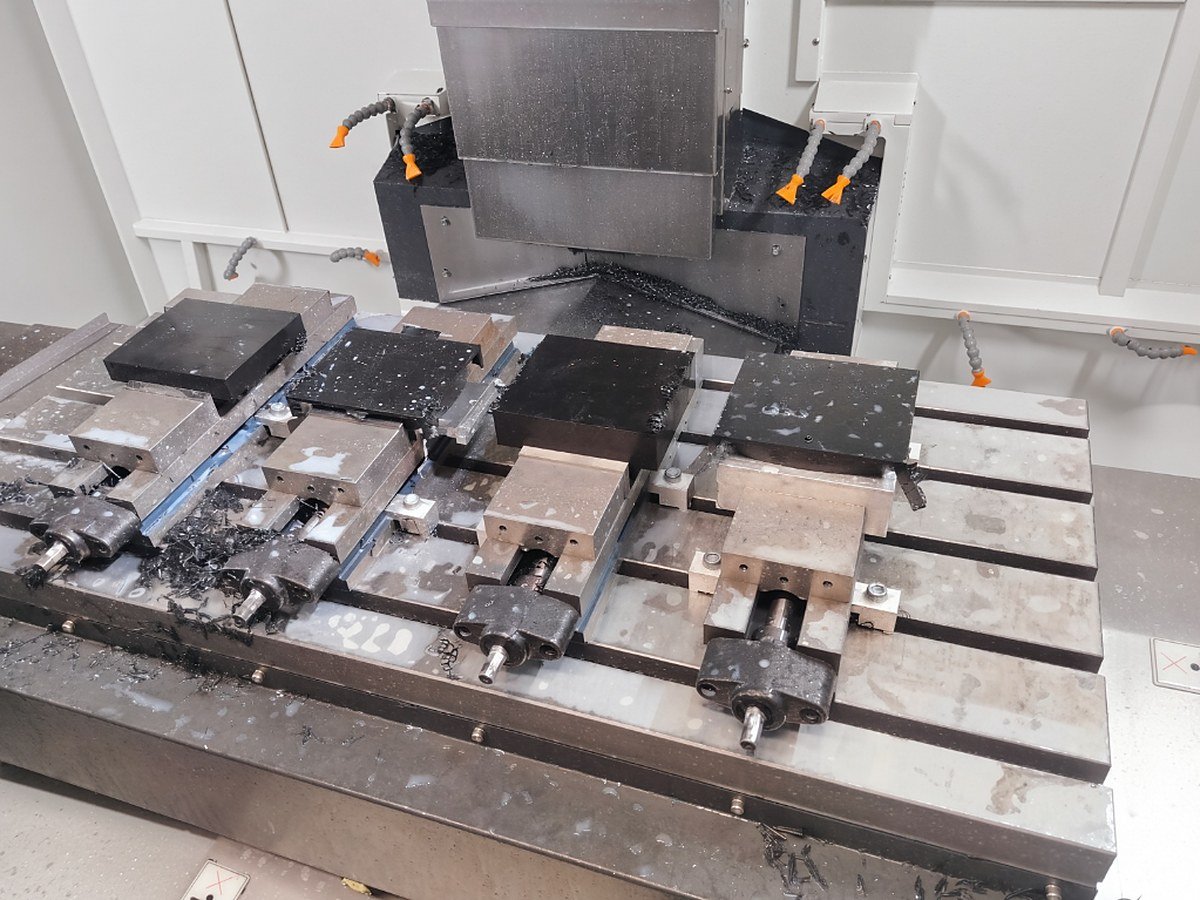

- Twin pallet vertical machining

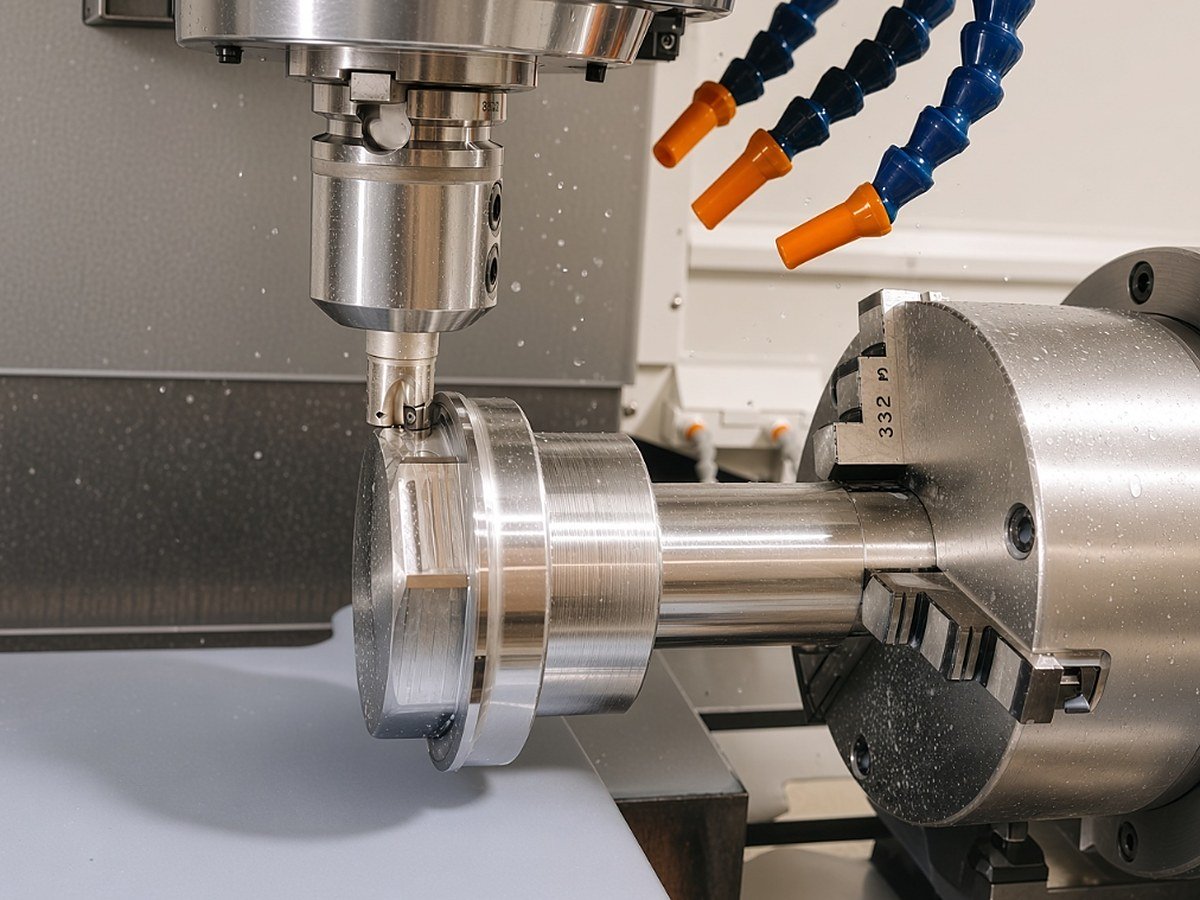

- 4th axis milling for multi-face parts
- Conventional milling and turning
- Surface grinding
- Welding and fabrication, machined after welding so the faces are true
- 3D printing for prototypes, jigs and first articles
What comes through the door
Drawing in, part out
Plates and profiles. Shafts and drive shafts. Lugs, pins, spacers and sleeves. Flanges, housings and bearing work. Bushes, rollers and adaptors. Threading and tapping, line boring, and specials in nuts and bolts.
Single parts, prototypes, and runs into the thousands. No minimum order.
Materials
What we run
Steel
Bright mild 1018 and 1020. Free-machining 1214. Medium carbon 1045, bright and black, to Ø160mm. 4140 heat treated to Ø230mm. 4340 heat treated. Case-hardening 8620. 20MnV6 to DIN 1629 and E470. G250 plate in 10, 12, 40 and 70mm. BIS450 abrasion-resistant plate.
Stainless
304 and 304L in round bar, welded and seamless pipe. 316 round bar. T303 free-machining. T431 through-hardened.
Aluminium
6061-T6 round. 6061-T651 plate to 80mm thick, sheet to 2,500 × 1,300mm. 5083 H112 plate. 6060-T5 in flat bar, round solid, round tube and square hollow.
Brass, bronze and plastics
C38500 free-machining brass. Aluminium bronze AS1565-95400. Acetal POM-C, Ertacetal, Vesconite, UHMWPE wear strip, HDPE, and nylon filament for printing.
Inspection
Measured, and written down
Inspection is manual and it is recorded. Micrometers, verniers, bore gauges, thread and pin gauges.
On a small job you get a report at the end. On a longer one we check and report at stages through the run, so nothing is found at the end that should have been found at the start. On a big job that is usually four checkpoints.
We machine to your drawing, including where hole pitch or a fit is called up as critical. Material certificates pass through on request.
Laser cutting, heat treatment, plating, anodising and gear cutting go to the same suppliers we have used for years. You get a finished part back, and one invoice.
How to get a quote
Everything runs through your own account
Job details, drawings, revisions, quote approval and job tracking all live in one place. Create an account, lodge the job and attach the drawing — you will get a written quote with a real date, and you can watch the job move across the floor without ringing us.
Seaford VIC 3198
